GB/T18984 09MnNiD Low Temperature Seamless Steel Pipe
- GB/T18984
- China
- Stock,Production
- 09MnNiD
09MnNiD Seamless Steel Pipes Main characteristics of 09MnNiD The performance of this steel is better than that of 30Mn2 steel. It has higher hardenability, with a critical hardenability diameter of 8-22mm in water, good machinability, moder
GB/T18984 09MnNiD Low Temperature Seamless Steel Pipe
GB/T18984 09MnNiD Low Temperature Seamless Steel Pipe
Main characteristics of 09MnNiD
The performance of this steel is better than that of 30Mn2 steel. It has higher hardenability, with a critical hardenability diameter of 8-22mm in water, good machinability, moderate cold deformation plasticity and weldability; in addition, the toughness of the steel is not much reduced during heat treatment. But it has quite high strength and wear resistance, especially still high toughness during water quenching; but this steel is highly sensitive to white spots, and has a tendency to temper brittleness and overheat sensitivity during heat treatment.
Application example: This steel is mainly used in quenched and tempered state to manufacture hot stamping parts that require high toughness and wear resistance; it can also be used in normalized or hot rolled supply state, such as tractor track pins.
What kind of steel material is 09MnNiD and what is the standard
09MnNiD is a steel grade imported from Germany. It is a carburizing steel and can also be used as quenched and tempered steel. Hardenability, small heat treatment deformation, good low temperature toughness, good cutting performance, but poor weldability.

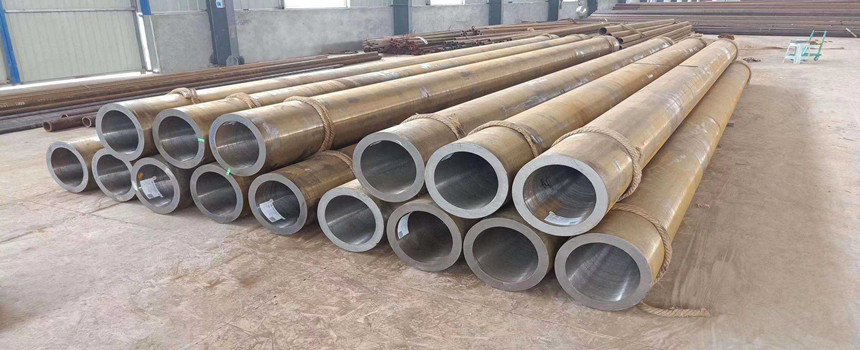

09MnNiD seamless steel pipe
Standard:
Q/TDGG0040-2004--------Enterprise Standard
Application of 09MnNiD seamless steel pipe
09MnNiD seamless steel pipe is suitable for low temperature pressure vessel
Chemical composition of 09MnNiD seamless steel pipe
| Grade | Chemical composition | ||||||||
| C | Si | Mn | Cr | Ni | Cu | Nb | P | S | |
| 09MnNiD | 0.06~0.12 | 0.15~0.35 | 1.20~1.60 | ≤0.30 | 0.45~0.85 | ≤0.25 | ≤0.050 | ≤0.020 | ≤0.01 |
Physical properties of 09MnNiD seamless steel pipe
| Grade | Physical properties | ||||
| tensile strength（Mpa） | Yield Strength（Mpa） | Elongation(%) | Impact test | ||
| T(℃) | Kv(j) | ||||
| 09MnNiD | 440-580 | ≥280 | ≥24 | -70 | ≥47 |
Standard:
Q/TDGG0040-2004--------Enterprise Standard
09mnnid steel pipe is one of the many products in the cryogenic vessel pipe that is in short supply in our company. The carbon content in the steel pipe is 0.12% of the steel pipe, and the silicon content ranges from 0.15 to 0.35. The product contains manganese The content is about 1.15 to 1.50, the phosphorus content is much less than the previous ones, its ratio is 0.012%, and the sulfur content in the product is 0.002% less than the phosphorus content, which is also in the steel pipe The one with the least proportion accounts for 0.010%, and the proportion of aluminum in 09MnD steel pipe is 0.015%.
Product key description, this is a very good product description, detailing our product use, product characteristics
