Alloy Seamless Steel Pipe ANSI B36.19

Standard:
Product origin:
Availability:
Material/Grade:

Alloy Seamless Steel Pipes (ANSI B36.19) offered by Beite Steel are made as per ASTM A333 standards Seamless Ferritic Alloy-SteelPipe and are used mainly for for High-Temperature Service.Alloy Seamless Steel Pipe ANSI B36.19 12 Inch Specifications.

Send Email

Alloy Seamless Steel Pipe ANSI B36.19

Alloy Seamless Steel Pipe ANSI B36.19 12 Inch

Alloy Seamless Steel Pipe ANSI B36.19

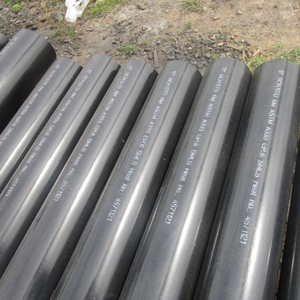

Alloy Seamless Steel Pipes (ANSI B36.19) offered by Beite Steel are made as per ASTM A333 standards Seamless Ferritic Alloy-SteelPipe and are used mainly for for High-Temperature Service

Alloy Seamless Steel Pipe ANSI B36.19 12 Inch Specifications:

Name: Alloy Steel Pipe.
Material: ASTM A333 Gr.6.
Thickness: SCH STD.
Length: 6 Meter.
Standard: ANSI B36.19.
Size: 12 Inch.

Marking: as per customer's requirement

Inner packing:

Caps on two ends of every pipe

Outer packing:

Hexagonal shape bundles wrapped with strong steel trip oraccording to customers'requests.

Related Products:

According to ASME B36.10 and ASME B 36.19.

NPS	OD	Schedule Designations	Wall Thickness	Inside Diameter	Weight
NPS	(Inches)	(ANSI/ASME)	(Inches)	(Inches)	(lbs./ft.)
1/8	0.405	10/10S	0.049	0.307	0.1863
		Std./40/40S	0.068	0.269	0.2447
		XS/80/80S	0.095	0.215	0.3145
1/4	0.54	10/10S	0.065	0.41	0.3297
		Std./40/40S	0.088	0.364	0.4248
		XS/80/80S	0.119	0.302	0.5351
3/8	0.675	10/10S	0.065	0.545	0.4235
		Std./40/40S	0.091	0.493	0.5676
		XS/80/80S	0.126	0.423	0.7388
1/2	0.84	5/5S	0.065	0.71	0.5383
		10/10S	0.083	0.674	0.671
		Std./40/40S	0.119	0.622	0.851
		XS/80/80S	0.147	0.546	1.088
		160	0.188	0.466	1.309
		XX	0.294	0.252	1.714
3/4	1.05	5/5S	0.065	0.92	0.6838
		10/10S	0.083	0.884	0.8572
		Std./40/40S	0.113	0.824	1.131
		XS/80/80S	0.154	0.742	1.474
		160	0.219	0.618	1.944
		XX	0.308	0.434	2.441
1	1.315	5/5S	0.065	1.185	0.8678
		10/10S	0.109	1.097	1.404
		Std./40/40S	0.133	1.049	1.679
		XS/80/80S	0.179	0.957	2.172
		160	0.25	0.815	2.844
		XX	0.358	0.599	3.659
1 1/4	1.66	5/5S	0.065	1.53	1.107
		10/10S	0.109	1.442	1.806
		Std./40/40S	0.14	1.38	2.273
		XS/80/80S	0.191	1.278	2.997
		160	0.25	1.16	3.765
		XX	0.382	0.896	5.214
1 1/2	1.9	5/5S	0.065	1.77	1.274
		10/10S	0.109	1.682	2.085
		Std./40/40S	0.145	1.61	2.718
		XS/80/80S	0.2	1.5	3.631
		160	0.281	1.338	4.859
		XX	0.4	1.1	6.408
2	2.375	5/5S	0.065	2.245	1.604
		10/10S	0.109	2.157	2.638
		Std./40/40S	0.154	2.067	3.653
		XS/80/80S	0.218	1.939	5.022
		160	0.344	1.689	7.462
		XX	0.436	1.503	9.029
2 1/2	2.875	5/5S	0.083	2.709	2.475
		10/10S	0.12	2.635	3.531
		Std./40/40S	0.203	2.469	5.793
		XS/80/80S	0.276	2.323	7.661
		160	0.375	2.125	10.01
		XX	0.552	1.771	13.69
3	3.5	5/5S	0.083	3.334	3.029
		10/10S	0.12	3.26	4.332
		Std./40/40S	0.216	3.068	7.576
		XS/80/80S	0.3	2.9	10.25
		160	0.438	2.624	14.32
		XX	0.6	2.3	18.58
3 1/2	4	5/5S	0.083	3.834	3.472
		10/10S	0.12	3.76	4.973
		Std./40/40S	0.226	3.548	9.109
		XS/80/80S	0.318	3.364	12.5
		XX	0.636	2.728	22.85
4	4.5	5/5S	0.083	4.334	3.915
		10/10S	0.12	4.26	5.613
		Std./40/40S	0.237	4.026	10.79
		XS/80/80S	0.337	3.826	14.98
		120	0.438	3.624	19
		160	0.531	3.438	22.51
		XX	0.674	3.152	27.54
4 1/2	5	Std./40/40S	0.247	4.506	12.53
		XS/80/80S	0.355	4.29	17.61
		XX	0.71	3.58	32.43
5	5.563	5/5S	0.109	5.345	6.349
		10/10S	0.134	5.295	7.77
		Std./40/40S	0.258	5.047	14.62
		XS/80/80S	0.375	4.813	20.78
		120	0.5	4.563	27.04
		160	0.625	4.313	32.96
		XX	0.75	4.063	38.55
6	6.625	5/5S	0.109	6.407	7.585
		10/10S	0.134	6.357	9.289
		Std./40/40S	0.28	6.065	18.97
		XS/80/80S	0.432	5.761	28.57
		120	0.562	5.491	36.39
		160	0.719	5.189	45.35
		XX	0.864	4.897	53.16
7	7.625	Std./40/40S	0.301	7.023	23.57
		XS/80/80S	0.5	6.625	38.05
		XX	0.875	5.875	63.08
8	8.625	5S	0.109	8.407	9.914
		10/10S	0.148	8.329	13.4
		20	0.25	8.125	22.36
		30	0.277	8.071	24.7
		Std./40/40S	0.322	7.981	28.55
		60	0.406	7.813	35.64
		XS/80/80S	0.5	7.625	43.39
		100	0.594	7.439	50.95
		120	0.719	7.189	60.71
		140	0.812	7.001	67.76
		XX	0.875	6.875	72.42
		160	0.906	6.813	74.69
9	9.625	Std./40/40S	0.342	8.941	33.9
		XS/80/80S	0.5	8.625	48.72
		XX	0.875	7.875	81.77
10	10.75	5S	0.134	10.482	15.19
		10S	0.165	10.42	18.7
		20	0.25	10.25	28.04
		30	0.307	10.136	34.24
		Std./40/40S	0.365	10.02	40.48
		XS/60/80S	0.5	9.75	54.74
		80	0.594	9.564	64.43
		100	0.719	9.314	77.03
		120	0.844	9.064	89.29
		140	1	8.75	104.13
		160	1.125	8.5	115.64
11	11.75	Std./40/40S	0.375	11	45.55
		XS/80/80S	0.5	10.75	60.07
		XX	0.875	10	101.63
12	12.75	5S	0.165	12.42	22.18
		10S	0.18	12.39	24.2
		20	0.25	12.25	33.38
		30	0.33	12.09	43.77
		Std./40S	0.375	12	49.56
		40	0.406	11.938	53.53
		XS/80S	0.5	11.75	65.42
12	12.75	60	0.562	11.626	73.15
		80	0.688	11.376	88.63
		100	0.844	11.064	107.32
		120	1	10.75	125.49
		140	1.125	10.5	139.67
		160	1.312	10.126	160.27
14	14	10S	0.188	13.624	27.73
		10	0.25	13.5	36.71
		20	0.312	13.376	45.61
		Std./30/40S	0.375	13.25	54.57
		40	0.438	13.124	63.44
		XS/80S	0.5	13	72.09
		60	0.594	12.814	85.05
		80	0.75	12.15	106.13
		100	0.938	12.126	130.85
		120	1.094	11.814	150.9
		140	1.25	11.5	170.21
		160	1.406	11.188	189.1
16	16	10S	0.188	15.624	31.75
		10	0.25	15.5	42.05
		20	0.312	15.376	52.27
		Std./30/40S	0.375	15.25	62.58
		XS/40/80S	0.5	15	82.77
		60	0.656	14.688	107.5
		80	0.844	14.314	136.61
		100	1.031	13.938	164.82
		120	1.219	13.564	192.43
		140	1.438	13.124	223.64
		160	1.594	12.814	245.25
18	18	10S	0.188	17.624	35.76
		10	0.25	17.5	47.39
		20	0.312	17.376	58.94
		Std./40S	0.375	17.25	70.59
		30	0.438	17.124	82.15
		XS/80S	0.5	17	93.45
		40	0.562	16.876	104.67
		60	0.75	16.5	138.17
		80	0.938	16.126	170.92
		100	1.156	15.688	207.96
		120	1.375	15.25	244.14
		140	1.562	14.876	274.22
		160	1.781	14.438	308.5
20	20	10	0.25	19.5	52.73
		20	0.375	19.25	78.6
		30	0.5	19	104.13
		40	5.94	18.814	123.11
		60	8.12	18.376	166.4
		80	1.031	17.938	208.87
		100	1.281	17.438	256.1
		120	1.5	17	296.37
		140	1.75	16.5	341.09
		160	1.969	16.064	379.17
NPS	OD	Schedule Designations	Wall Thickness	Inside Diameter	Weight
NPS	(Inches)	(ANSI/ASME)	(Inches)	(Inches)	(lbs./ft.)
22	22	10/10S	0.25	21.5	58.07
		Std./20/40S	0.375	21.25	86.61
		XS/30/80S	0.5	21	114.81
		60	0.875	20.25	197.41
		80	1.125	19.75	250.81
		100	1.375	19.25	302.88
		120	1.625	18.75	353.61
		140	1.875	18.25	403
		160	2.125	17.75	451.06
24	24	10/10S	0.25	23.5	63.41
		Std./20/40S	0.375	23.25	94.62
		XS/80S	0.5	23	125.49
		30	0.562	22.876	140.68
		40	0.688	22.626	171.29
		60	0.969	22.064	238.35
		80	1.219	21.564	296.58
		100	1.531	20.938	367.39
		120	1.812	20.376	429.39
		140	2.062	19.876	483.1
		160	2.344	19.314	542.13
26	26	10	0.312	25.376	85.6
		Std./40S	0.375	25.25	102.63
		XS/80S	0.5	25	136.17
28	28	10	0.312	27.376	92.26
		Std./40S	0.375	27.25	110.64
		20/80S	0.5	27	146.25
		30	0.625	26.75	182.73
30	30	10	0.312	29.376	98.93
		Std./40S	0.375	29.25	118.65
		XS/20/80S	0.5	29	157.53
		30	0.625	28.75	196.08
32	32	10	0.312	31.376	105.59
		Std.	0.375	31.25	126.66
		20	0.5	31	168.21
		30	0.625	30.75	109.43
		40	0.688	30.624	230.08
34	34	10	0.312	33.376	112.25
		Std.	0.375	33.25	134.67
		20	0.5	33	178.89
		30	0.625	32.75	222.78
		40	0.688	32.624	244.77
36	36	10	0.312	35.375	118.92
		Std./40S	0.375	35.25	142.68
		XS/80S	0.5	35	189.57
42	42	Std./40S	0.375	41.25	166.71
		XS/80S	0.5	41	221.61
		30	0.625	40.75	276.18
		40	0.75	40.5	330.41
48	48	Std./40S	0.375	47.25	190.74
48	48	XS/80S	0.5	47	190.74
