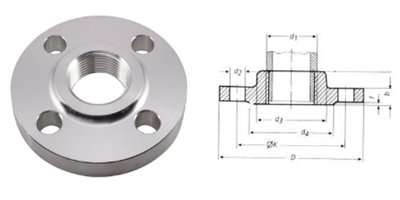

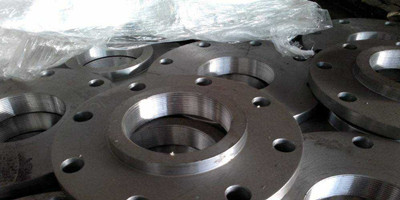

Stainless steel threaded flange
Stainless steel threaded flange
Product type: Threaded pipe fitting type
Product description:
Stainless steel threaded fittings
Compressive strength of threaded fittings: strong
Type: Horizontal
Connection method: welding
Special functions: corrosion resistance, high pressure resistance
Common standards for threaded fittings:
National standard: GB/T9112-2000 (GB9113?1-2000～GB9123?4-2000)
American Standard: ANSI B16.5 Class150, 300, 600, 900, 1500 (WN, SO, BL, TH, LJ, SW)
Japanese standard: JIS 5K, 10K, 16K, 20K (PL, SO, BL, WN, TH, SW)
German standard: DIN2573, 2572, 2631, 2576, 2632, 2633, 2543, 2634, 2545 (PL, SO, WN, BL, TH)
Ministry of Chemical Industry Standard:
HG5010-52～HG5028-58, HGJ44-91～HGJ65-91, HG20592-97 series, HG20615-97 series
Pressure vessel standard:
JB1157-82～JB1160-82, JB4700-2000～JB4707-2000
Ministry of Machinery Standards:
JB81-59～JB86-59、JB/T79-94～JB/T86-94、JB/T74-1994
Material & Grade
Stainless Steel Threaded / Screwed Flanges:
ASTM A 182, A 240 F 304 304L, 304H, 316, 316L, 316Ti, 310, 31 OS, 321, 321H, 311, 347, 347H, 904L
Duplex & Super Duplex Steel Threaded / Screwed Flanges:
ASTM/ASMEA/SA182F44, F45, F51, F53, F55, F60, F61
Size: 1 /2" (15 NB) to 48" (1200NB)
Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN
Flange Face Type: Plate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
